LiteBeam M5 23 UBNT – Long-Range Wireless Bridge for High-Speed Connectivity

Description

• Frequency Range: 5150–5875 MHz (Worldwide), 5725–5850 MHz (USA)

• Antenna Gain: 23 dBi

• Output Power: 25 dBm

• Max VSWR: 1.5:1

• Sensitivity: -75 to -97 dBm

• Wireless Throughput: Up to 100+ Mbps in real-world outdoor conditions

Hardware & Performance

• Processor: MIPS 74Kc, 533 MHz

• Memory: 64 MB RAM

• Networking Interface: 1 × 10/100 Mbps Ethernet port

• Power Consumption: 4W

• Power Supply: 24V, 0.2A Passive PoE adapter (included)

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return) ​

Mechanical & Environmental

• Dimensions: 362 × 267 × 184 mm (14.25 × 10.51 × 7.24 inches)

• Weight: 750 g (1.65 lb)

• Mounting: Pole-mounting kit included

• Operating Temperature: -40 to 70°C (-40 to 158°F)

• Operating Humidity: 5 to 95% non-condensing

• Wind Survivability: 200 km/h (125 mph)

• Wind Loading: 176.86 N @ 200 km/h (39.76 lbf @ 125 mph) ​

Certifications & Compliance

• Certifications: FCC, CE, IC

• RoHS Compliance: Yes

• ESD/EMP Protection: ±24 kV (contact/air)

• Shock and Vibration: ETSI300-019-1.4

• ETSI Specification: EN 302 326 DN2

🔧 Key Features

• InnerFeed® Technology: Integrates the radio system into the feedhorn of the antenna for a compact design.

• airMAX® TDMA Protocol: Enhances network performance and scalability.

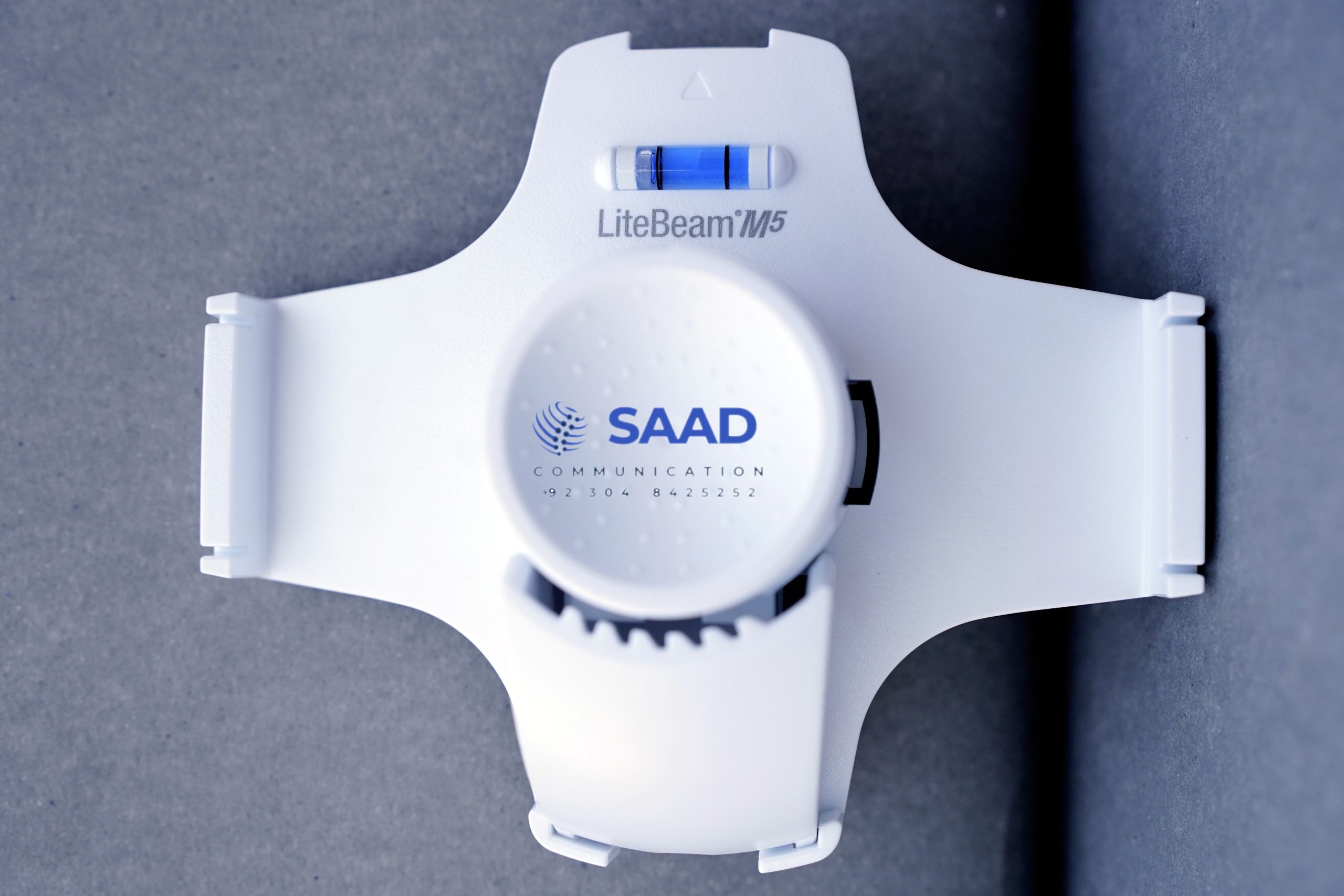

• Quick Assembly: Tool-less snap-on design with a ball-joint mount for 3-axis alignment.

• Durable Build: Designed for outdoor use with UV-stabilized plastic.

• High Throughput: Achieves over 100 Mbps real-world throughput over distances up to 30+ km.

• 📡 LiteBeam M5 23 – Wireless Range

  • Maximum Range: Up to 30+ kilometers (18+ miles) under ideal, line-of-sight conditions

  • Typical Effective Range: 10 to 20 kilometers (6 to 12 miles) with strong performance and stable signal

  • Antenna Gain: 23 dBi, which provides excellent directional focus and long-distance capability

  • Best Use Case: Point-to-point (PtP) links in rural, suburban, or enterprise outdoor environments where clear line-of-sight is available
